13C-NMR |

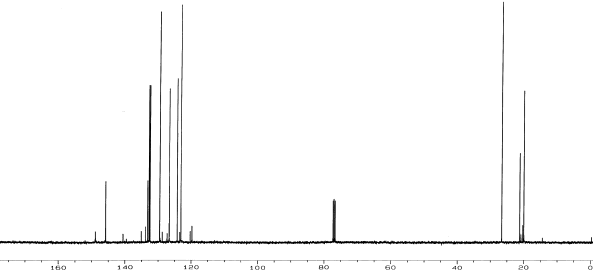

| 13C-NMR: crude product | |||
| 100 MHz, CDCl3, TMS | |||
| delta [ppm] | assignment | ||

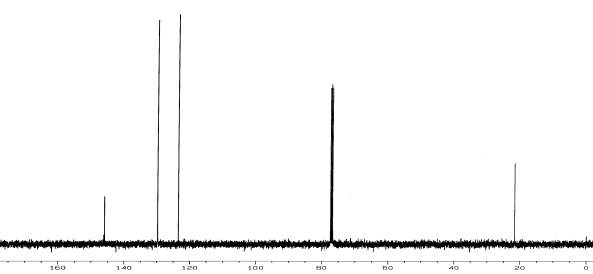

| 13C-NMR: 4-Nitrotoluene | |||
| 100 MHz, CDCl3, TMS | |||
| interactive spectrum | |||
| delta [ppm] | assignment | ||
| 21.57 | CH3 | ||
| 123.49 | C3 | ||
| 129.76 | C2 | ||
| 145.9 | C1 | ||
| 146.2 | C4 | ||
| 77.0 | CDCl3 | ||

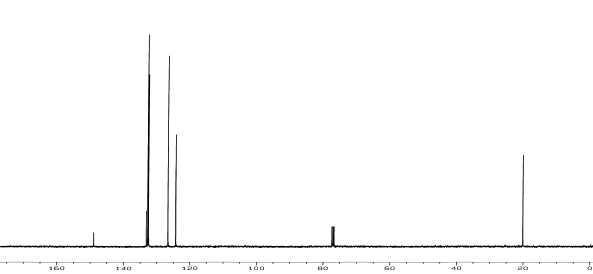

| 13C-NMR: 2-Nitrotoluene | |||
| 100 MHz, CDCl3, TMS | |||
| interactive spectrum | |||
| delta [ppm] | assignment | ||
| 20.05 | CH3 | ||
| 124.29 | C3 | ||
| 126.64 | C4 | ||
| 132.51 | C6 | ||
| 132.80 | C5 | ||
| 133.21 | C1 | ||
| 148.29 | C2 | ||
| 77.0 | CDCl3 | ||

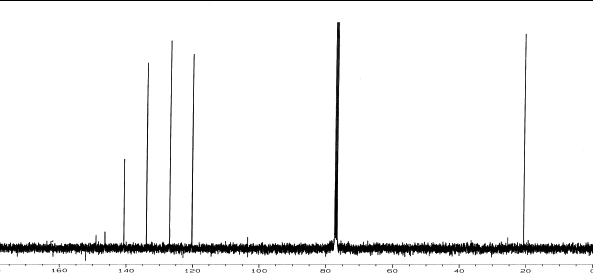

| 13C-NMR: 2,4-Dinitrotoluene | |||
| 100 MHz, CDCl3, TMS | |||
| interactive spectrum | |||
| delta [ppm] | assignment | ||
| 20.69 | CH3 | ||
| 120.22 | C3 | ||
| 126.97 | C5 | ||
| 133.98 | C6 | ||
| 140.69 | C1 | ||
| 146.40 | C4 | ||
| 149.04 | C2 | ||
| 77.0 | CDCl3 | ||
