IR |

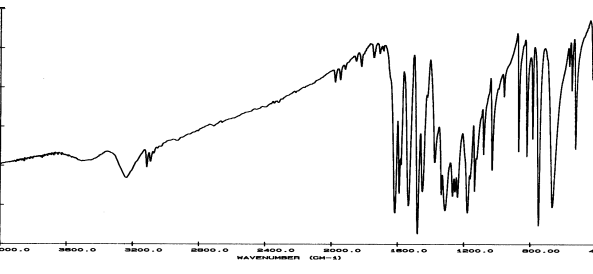

| IR: 4-Nitrotoluene | |||
| [KBr, T%, cm-1] | |||
| [cm-1] | assignment | ||
| 3100 | arom. C-H valence | ||
| 1600 | arom. C=C valence | ||
| 1520, 1340 | N=O conj. with arom. ring | ||
| 800-860 | deform. 1,4-disubst. arom. ring | ||

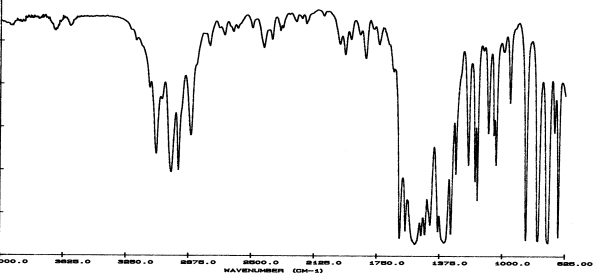

| IR: 2-Nitrotoluene | |||
| [Film, T%, cm-1] | |||
| [cm-1] | assignment | ||
| 3100 | arom. C-H valence | ||
| 1600 | arom. C=C valence | ||
| 1520, 1340 | N=O conj. with arom. ring | ||
| 770-735 | deform. 1,2-disubst. arom. ring | ||

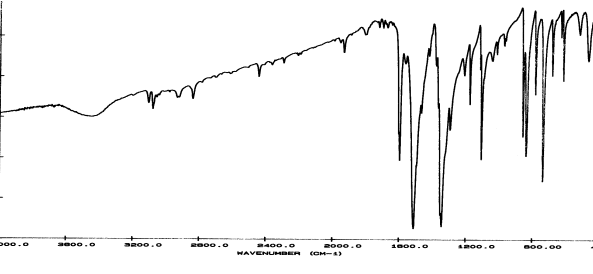

| IR: 2,4-Dinitrotoluene | |||
| [KBr, T%, cm-1] | |||
| [cm-1] | assignment | ||
| 3100 | arom. C-H valence | ||
| 1600 | arom. C=C valence | ||
| 1520, 1340 | N=O conj. with arom. ring | ||
| 860-800 | deform. 1,4-disubst. arom. ring | ||
| 915-840 | deform. 1,2,4trisubst. arom. ring | ||
| 770-735 | deform. 1,2-disubst. arom. ring | ||
