1H-NMR |
| 1H-NMR: crude product | |||
| 400 MHz, CDCl3, TMS | |||
| delta [ppm] | mult. | atoms | assignment |

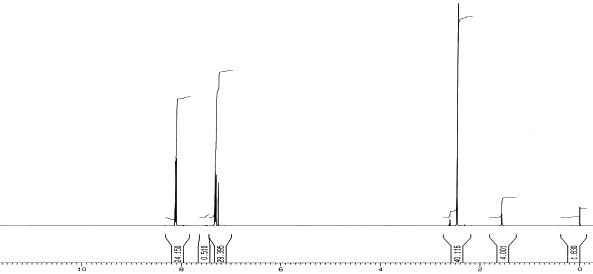

| 1H-NMR: 4-Nitrotoluene | |||
| 400 MHz, CDCl3, TMS | |||
| interactive spectrum | |||
| delta [ppm] | mult. | atoms | assignment |
| 2.46 | s | 3 H | CH3 |
| 7.33 | m (AA') | 2 H | 2-H, 6-H |
| 8.11 | m (XX') | 2 H | 3-H, 5-H |

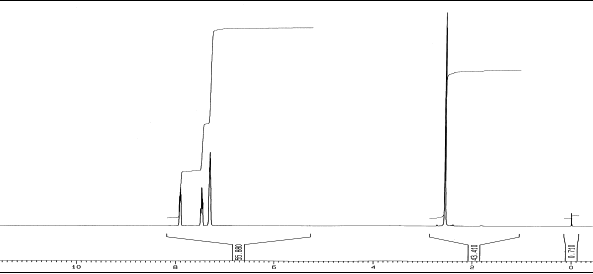

| 1H-NMR: 2-Nitrotoluene | |||
| 400 MHz, CDCl3, TMS | |||
| interactive spectrum | |||
| delta [ppm] | mult. | atoms | assignment |
| 2.55-2.56 | d | 3 H | CH3 |
| 7.30-7.33 | m | 2 H | 4-H, 6-H |
| 7.45-7.50 | m | 1 H | 5-H |
| 7.90-7.93 | m | 1 H | 3-H |

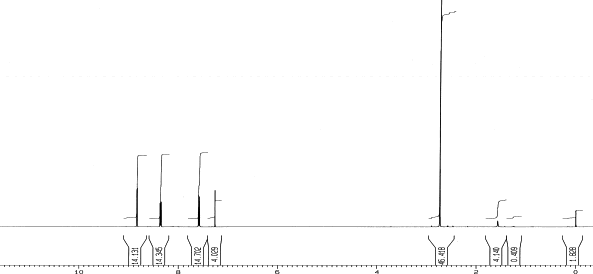

| 1H-NMR: 2,4-Dinitrotoluene | |||
| 400 MHz, CDCl3, TMS | |||
| interactive spectrum | |||
| delta [ppm] | mult. | atoms | assignment |
| 2.74 | s | 3 H | CH3 |
| 7.58-7.60 | d | 1 H | 5-H |
| 8.35-8.36 | dd | 1 H | 6-H |
| 8.83-8.84 | d | 1 H | 3-H |
